深圳市诚而通科技有限责任公司

产品规格书

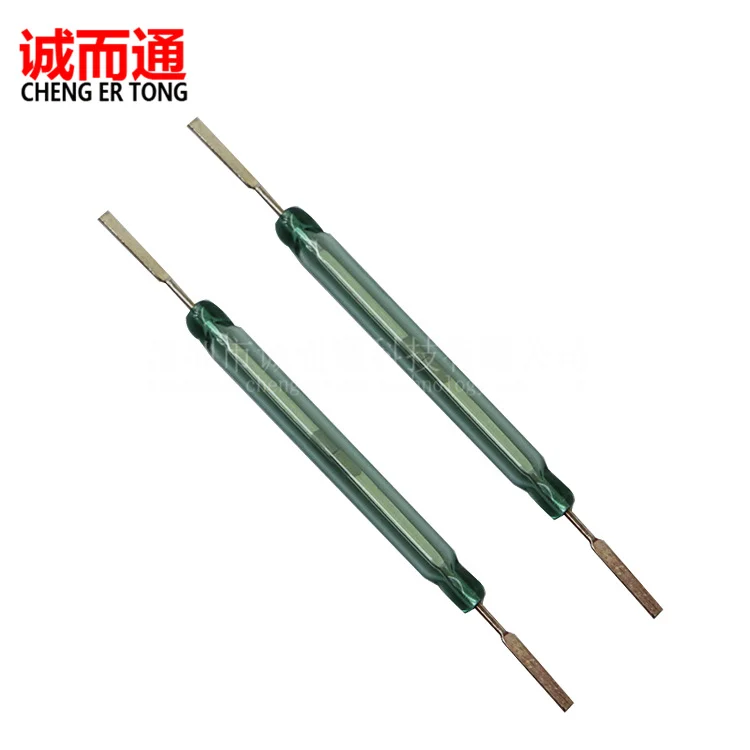

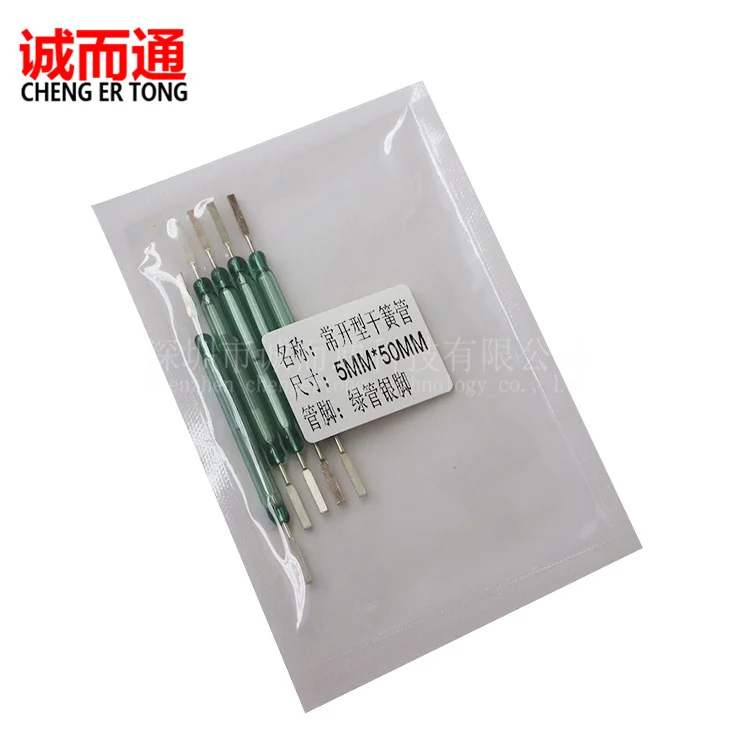

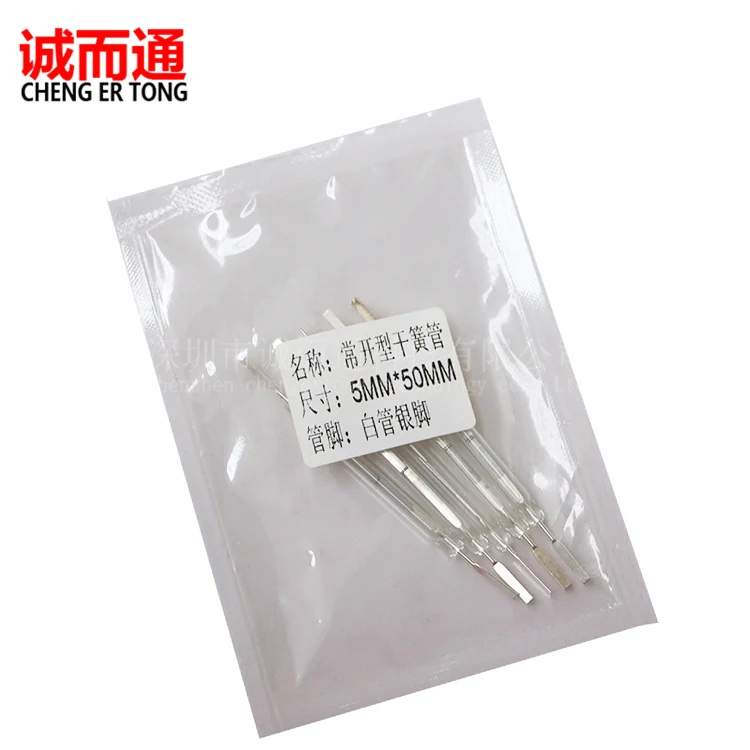

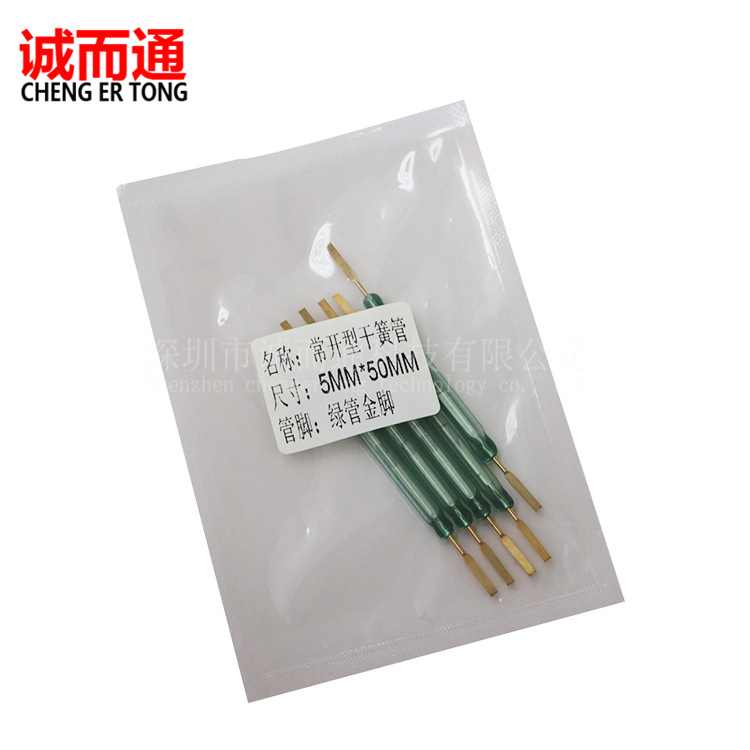

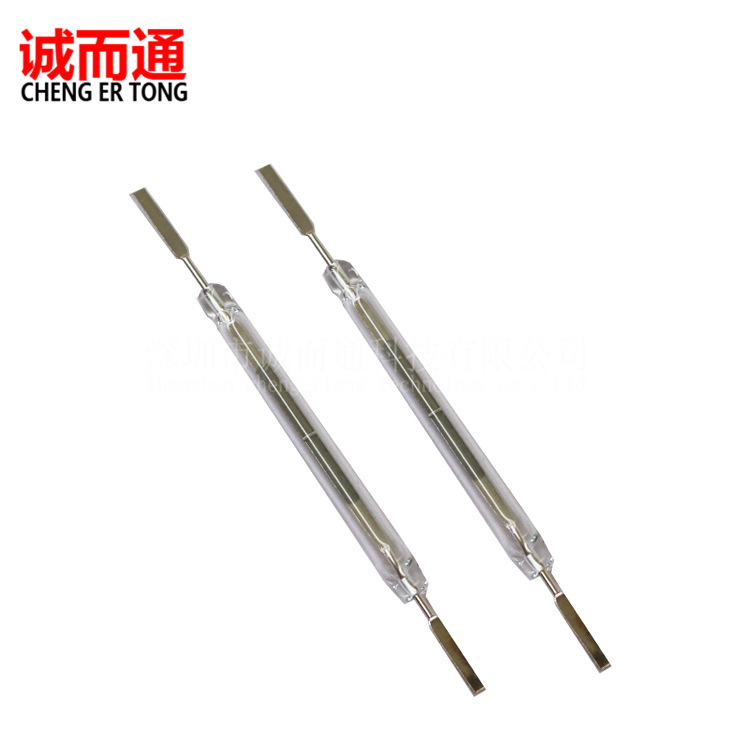

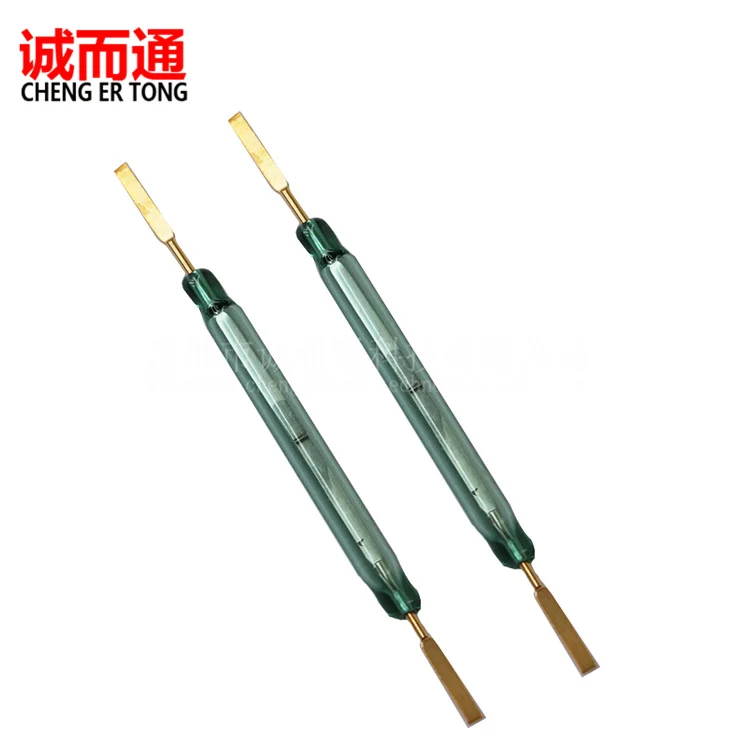

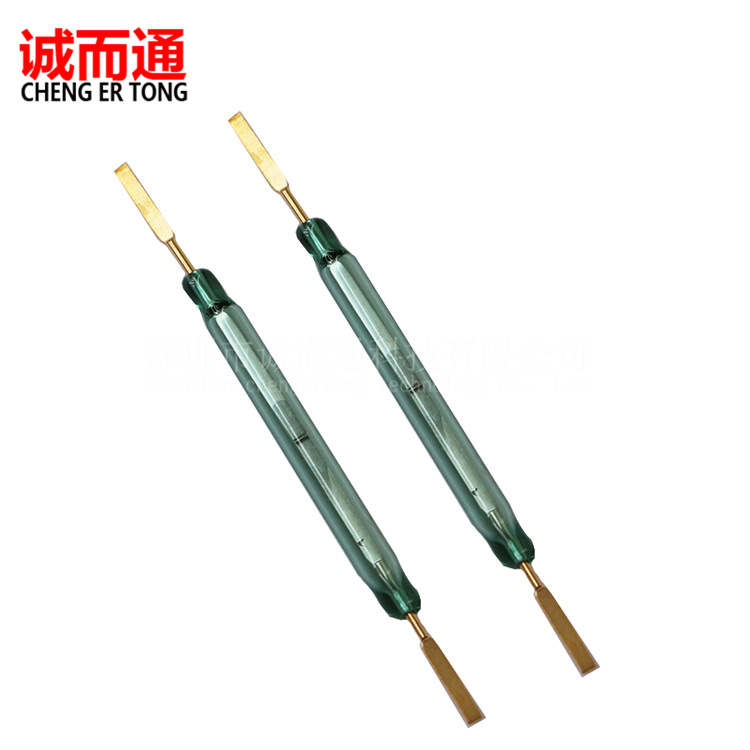

●类型：常开型干簧管

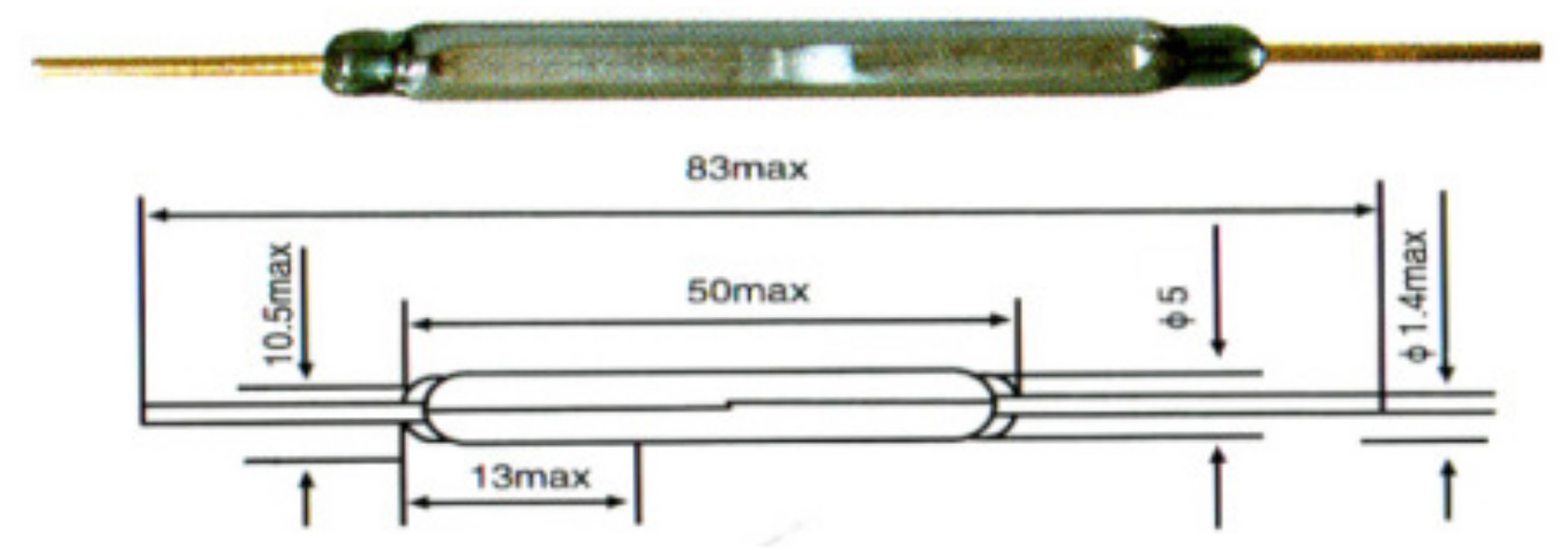

●干簧管尺寸：5mm*50mm(3A)

型号/DATA SCAN

Unit

LAX-3

接触方式/Contact Form

A

Max.最大功率/Contact Rating

W

50

Max.最大开关电压/Switching Voltage

VDC

1000

耐高压/Breakdown Voltage

VDC

1400

Max.最大开关电流/Switching Current

A

2.0

Max.最大负载电流/Carry  Current

A

3.0

Max.最大接触电阻/Intial Contact  Resistance

MΩ

100

Min.最小绝缘电阻/Insulation  Resistance

Ω

动作时间/Operating time

ms

弹跳时间/Bounce time

ms

释放时间/Release time

ms

响应频率/Resonant Frequency

Hz

Max.最大工作频率/Operating Frequency

Hz

灵敏值/Pull in Value

AT

120-200

Min.最小复位敏值/Drop out Value

FT

Max.最大接触电容/Contact Capacitance

PF

电气寿命/Electrcal Life

负载/Resistive Loads

测试线圈/Test Coll

圈数/Number of turns

电阻/Resistance

Ω

产品规格书

●类型：常开型干簧管

●干簧管尺寸：5mm*50mm(1A)

型号/DATA SCAN

Unit

LAX-50202

接触方式/Contact Form

A

Max.最大功率/Contact Rating

W

250

Max.最大开关电压/Switching Voltage

VDC

250

耐高压/Breakdown Voltage

VDC

700

Max.最大开关电流/Switching Current

A

5.0

Max.最大负载电流/Carry  Current

A

Max.最大接触电阻/Intial Contact  Resistance

MΩ

150

Min.最小绝缘电阻/Insulation  Resistance

Ω

109

动作时间/Operating time

ms

弹跳时间/Bounce time

ms

释放时间/Release time

ms

响应频率/Resonant Frequency

Hz

700

Max.最大工作频率/Operating Frequency

Hz

灵敏值/Pull in Value

AT

50-90

Min.最小复位敏值/Drop out Value

FT

Max.最大接触电容/Contact Capacitance

PF

1.0

电气寿命/Electrcal Life

负载/Resistive Loads

1x105

(250VDC,1A)

测试线圈/Test Coll

圈数/Number of turns

电阻/Resistance

Ω

5000

335
